Description
4K Camera RC Drone,JJRC X9PS Upgarde GPS 5G WiFi 1200meter control one-key-return Optical Flow Positioning Foldable Quadcopter
Description:

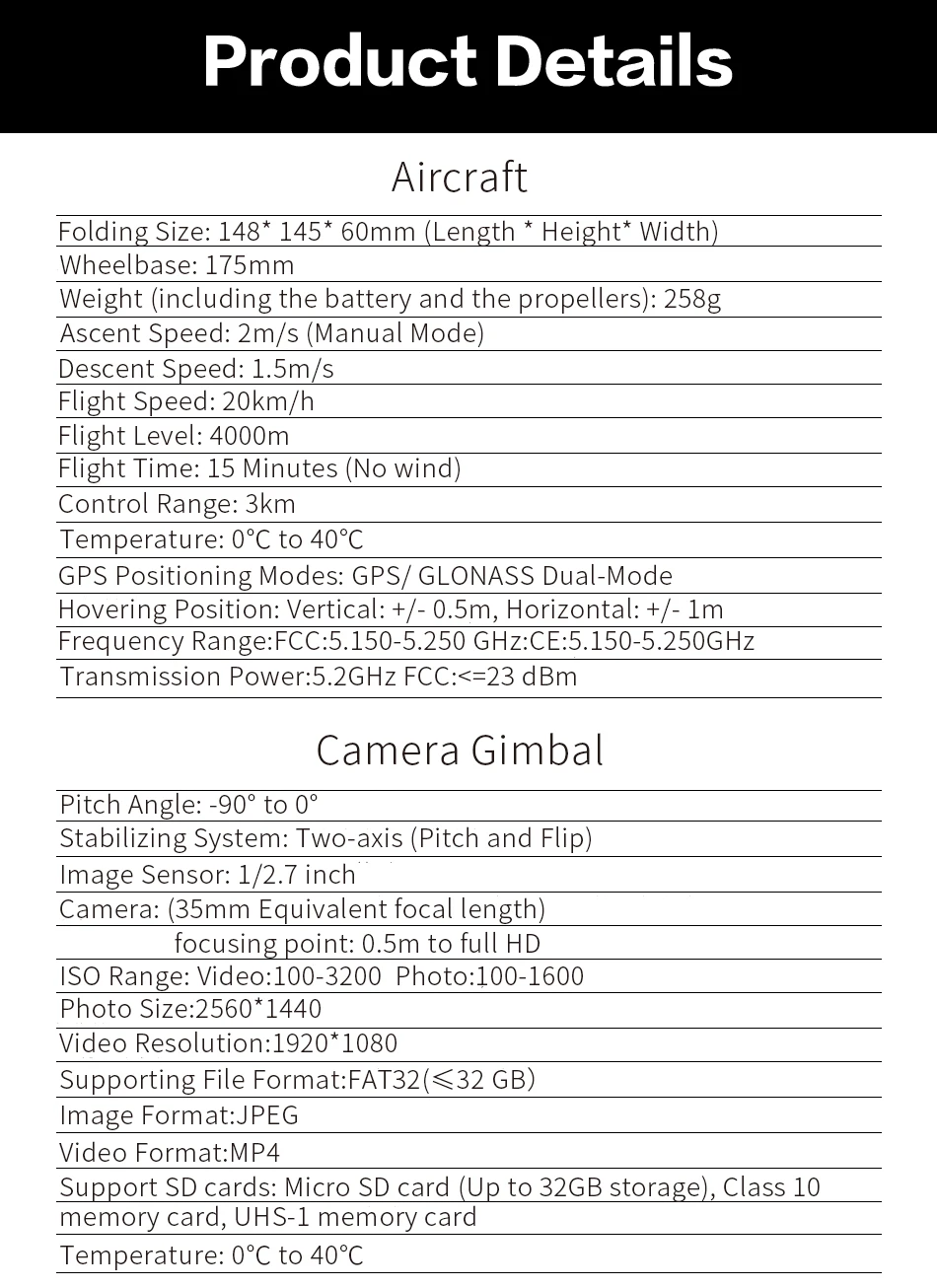

| Item | Specification |

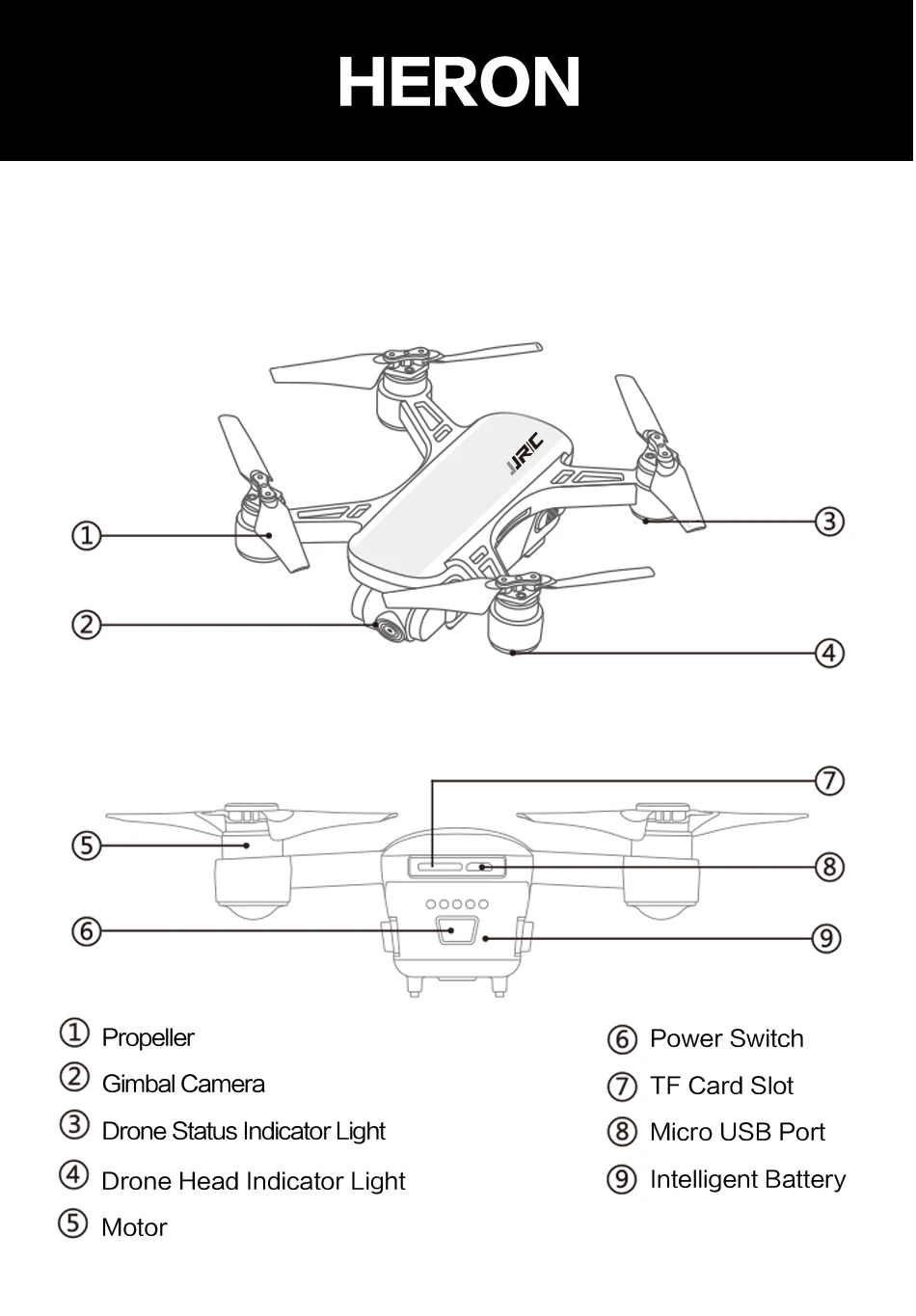

| JJRC X9PS RC Quadcopter |
Brand Name: JJRC
Item NO.: X9PS
Item Name: Upgraded Heron Drone
Wheelbase: 175mm
Battery: 11.4V 1000mAh 3S Lipo
Volumetric Energy Density: 11.4Wh
Charging Time: About 90 Mins(Power adapter using DC 5V 2A)
Max Power: 15W
Battery Weight: 72g
Battery Temperature: 0°C~40°C
Flight time: 21mins(No wind)
Control Range: 3km
Flight Speed: 20km/h
Flight Level: 4000m
Ascent Speed: 2m/s(Manual Mode)
Descent Speed: 1.5m/s
Temperature: 0°C~40°C
Charger Voltage: 13.05V
Charger Rated Power: 18W
GPS Positoning: GPS/ GLONASS Dual-Mode
Quadcopter Size: 148 x 145 x 60mm
Quadcopter Weight: 249g
Battery Size: 80 x 47 x 35.5mm
Battery Weight: 72g
Color: Black, White (Optional)
Hovering Position: Vertical: +/-0.5m, Horizontal: +/-1m
Frequency Range: FCC: 5.150-5.250GHz CE: 5.150-5.250GHz
Transmission Power: 5.2GHz FCC: ≤23dBm
|
| Camera Gimbal: |
Camera: 4K
Stabilizing System: Two-axis(Pitch and Flip)
Pitch Angle: -90° ~ 0°
Image Sensor: 1/2.7 inch
Focusing Point: 0.5m to full HD(35mm eqiuvalent focal lenght)
ISO Range: Video: 100-3200 Photo: 100-1600
Photo Shooting Mode: Single Shot/Gesture Shot
Photo Resolution: 2560×1440(Main) 1280×720(Subcameras)
Video Resolution: FHD:1920×1080(Main) 1280×720(Subcameras)
Digital Zoom: Max 50x
Support File Format: FAT32(≤32GB)
Image Format: JPEG
Video Format: MP4
Support SD Card: Micro SD Card(Up to 32GB Storage), Class 10 Memory Card, UHS-1 Memory Card
Temperature: 0°C~40°C
|

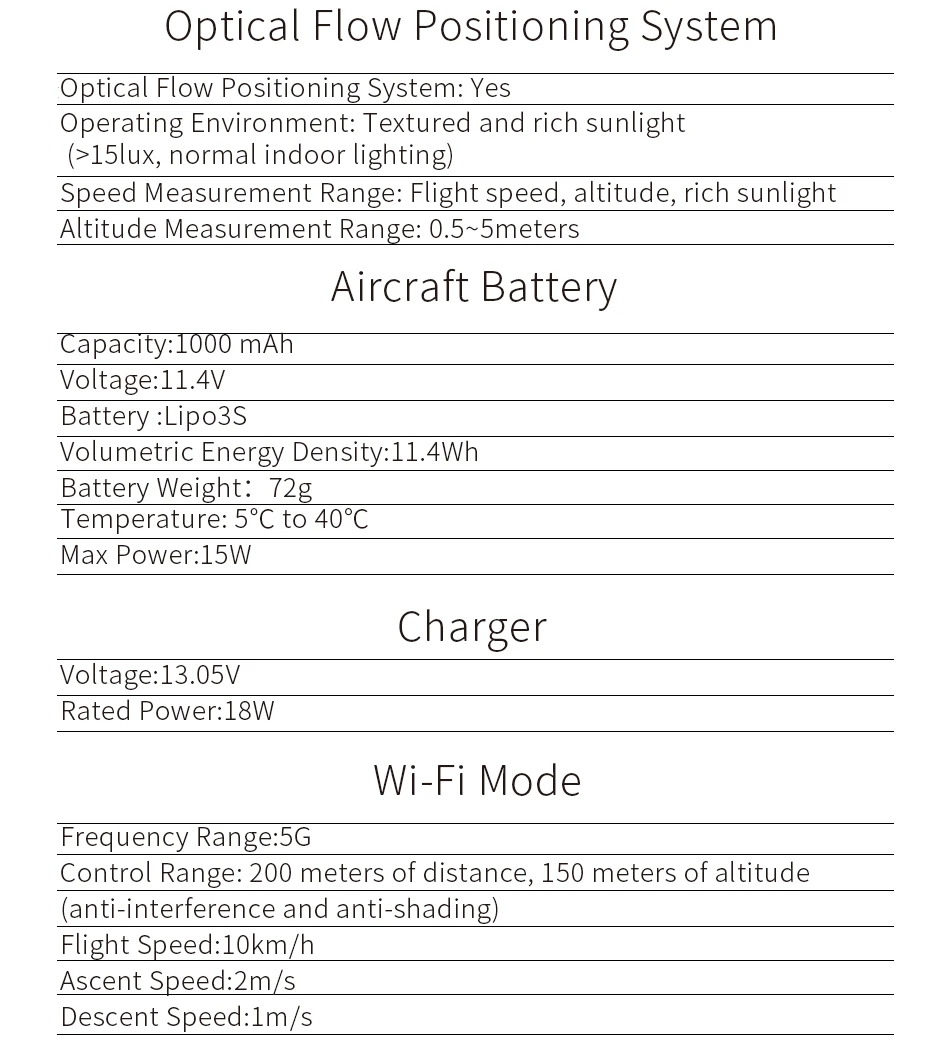

| Optical Flow Positioning System: |
Optical Flow Positioning System: Yes
Operating Environment: Textured and rich sunlight(>15lux, normal indoor lighting)
Speed Measurement Range: Flight speed, altitude, rich sunlight
Altitude Measurement Range: 0.5~5meters
|
| WIFI Mode: |
Frequency Range: 5GHz
Control Range: 200m(distance) 150m(altitude)
(anti-interference and anti-shading)
Flight Speed: 10km/h
Ascent Speed: 2m/s
Descent Speed: 1m/s
|

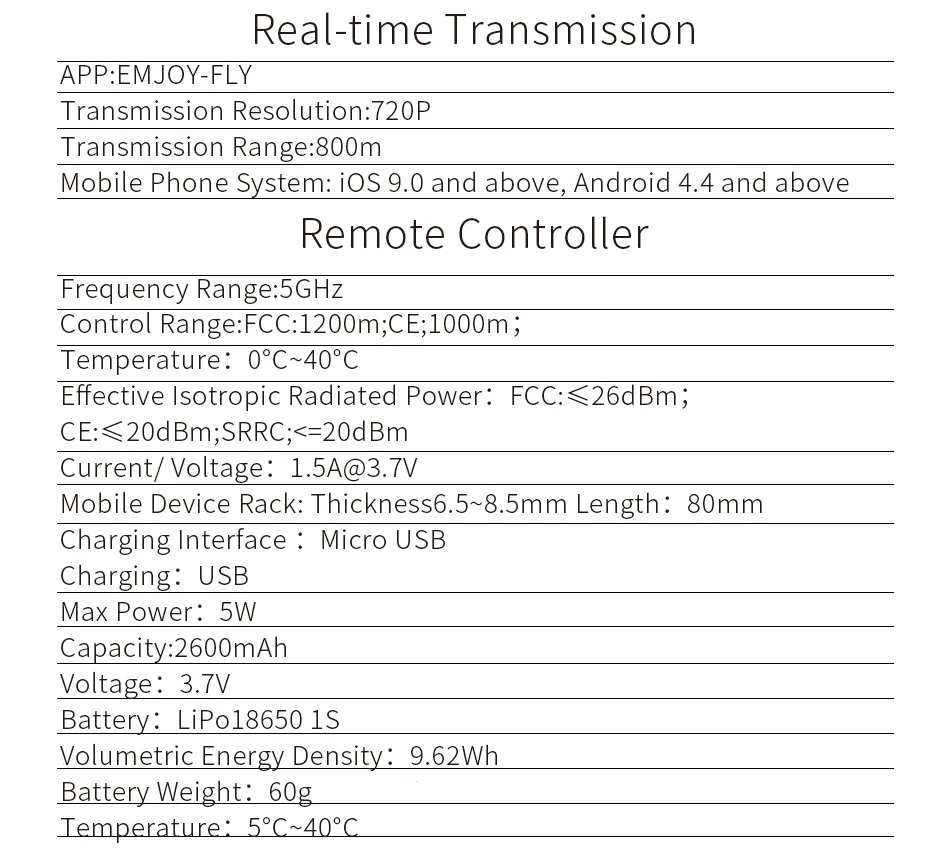

| Real-time Transmission |
APP: EMJOY-FLY
Transmission Resolution: 720P/2K(Change)
Transmission Range: 1000m
Mobile Phone System: IOS 9.0 and above, Android 4.4 and above
|

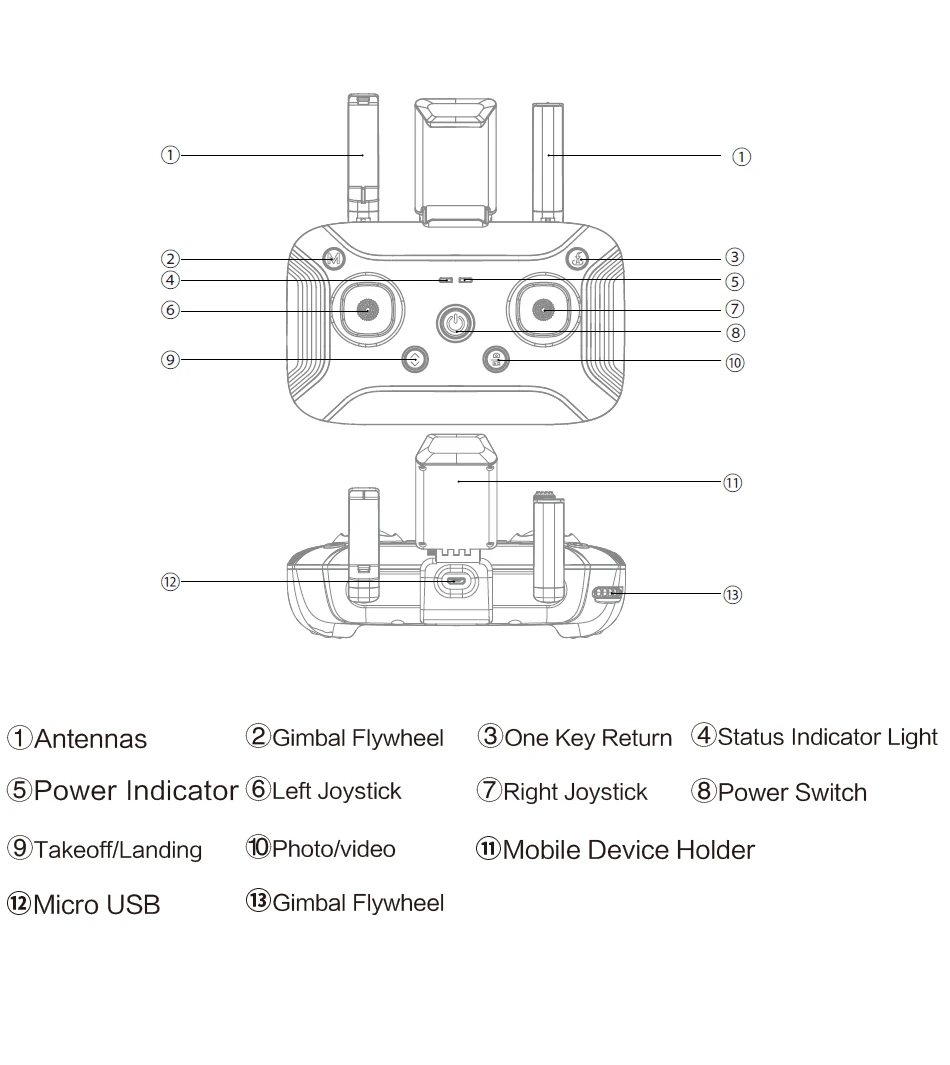

| Remote Controller: |
Frequency Range: 5GHz
Control Range: FCC: 1200m CE: 1000m
Transmitter Battery: 3.7V 2600mAh 1S 18650 Lipo
Current: 1.5A
Charging: Micro USB
Max Power: 5W
Volumetric Energy Density: 9.62Wh
Effective Isotropic Radiated Power: FCC: ≤26dBm CE: ≤20dBm SRRC:≤20dBm
Mobile Device Rack: Thickness 6.5~8.5mm Lenght: 80mm
Mobile device bracket: 11mm(MaxThickness) 83.5mm(Max Length)
Battery Weight: 60g
Temperature: 5°C~40°C
|
Features:
–249g Ultralight: No registration is required, which meets the safety weight requirements of micro drones in most countries and regions.
– GPS Positioning: Under GPS mode, when the aircraft receives the signal from satellites, it will position where it is.

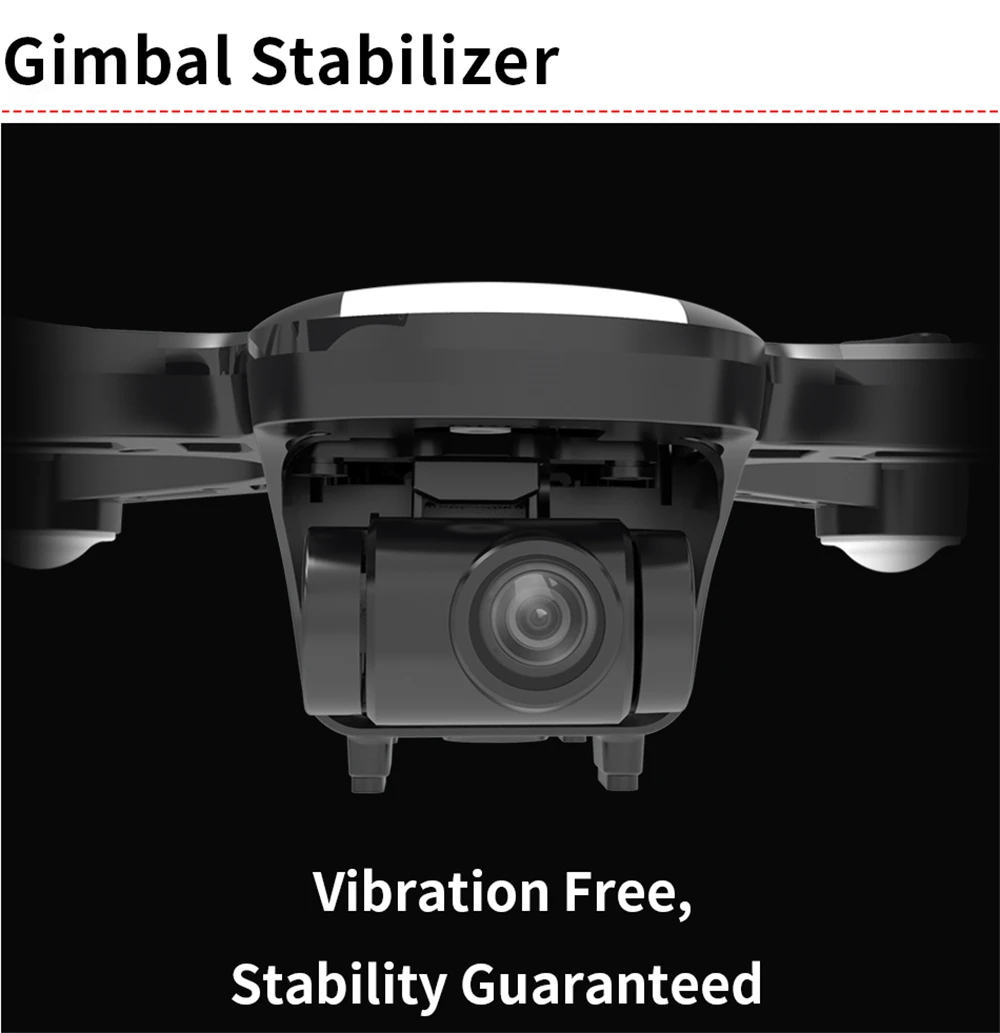

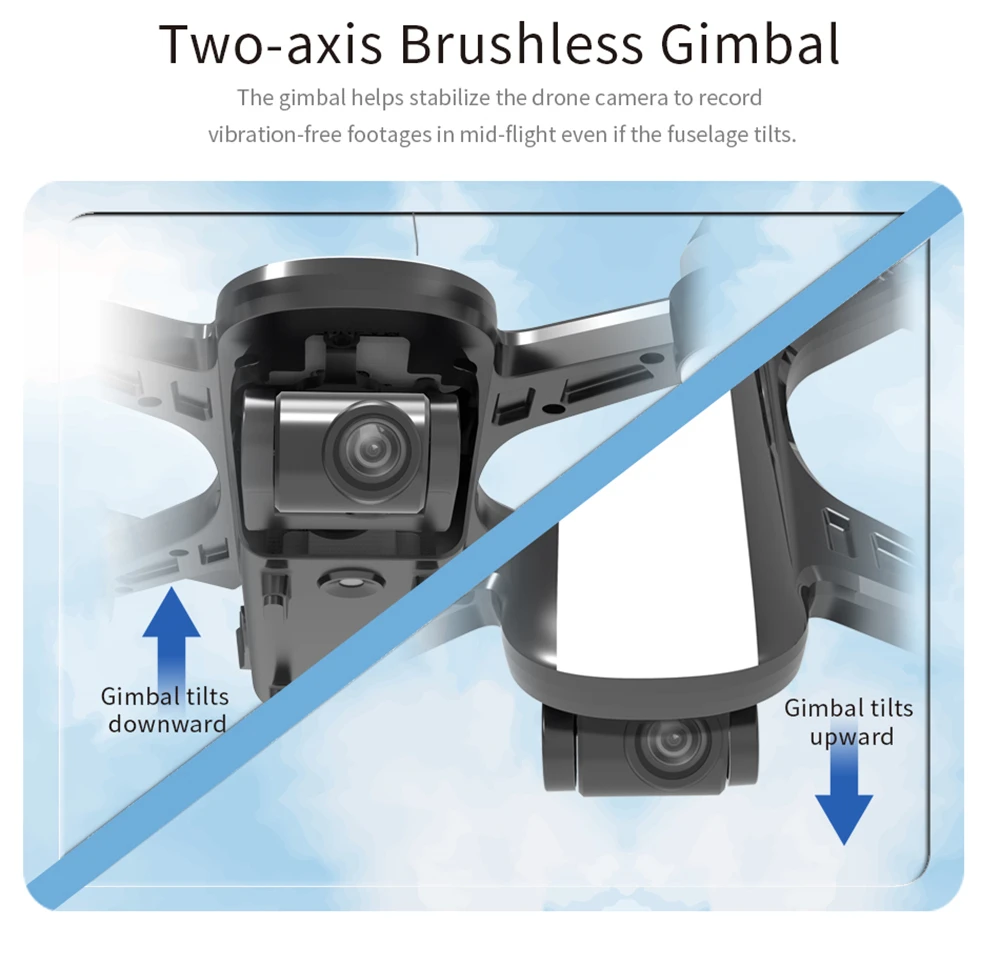

– 4K HD Camera Gimbal, 5G WIFI FPV. It is equipped with 4K camera, 4K videos and photos, tuned amazingly to capture pictures and videos from the sky, also with two-axis brushless gimbal,helping the drone record vibration-free footages.
– Optical Flow Positioning: It captures image data with the drone’s bottom camera, then uses the optical flow to improve the smoothness of the control.
– Brushless Motor. It is equipped with the 1504 brushless motor, which makes your flight more powerful and more efficient.
–FPV Real-time Transmission: Instantly see what drone camera records directly on your phone.
– Altitude Hold Mode: In altitude hold mode, the drone maintains a consistent altitude while allowing roll, pitch, and yaw to be controlled normally.
– One Key Takeoff /Landing. One press automatically taking off or landing, the drone will take off or go back to the position where it took off.
– One Key Return. One-key return function makes it easily to find the way home.
– One Key Following Mode. In the mode, the drone will fly following the player to capture the beautiful moment
– Point of Interesting Flight: Choose one point, then the drone will fly around the point in a circle.
–WayPoint Flying: Design your own flight route
–Gesture Shot for Photo and Video: It adopts the gesture recognition system to follow for capturing photo or video using gestures once recognized and identified.
– Tap to Fly. Choose one point, the drone will fly toward the aim straightly.
Function: Forward/backward, Turn left/right,Up/down, Camera, FPV, GPS, Altitude Hold Mode, Continuous Shooting, Headless Mode, One Key Automatic Return, One Key Follow, One Key Landing, One Key Taking Off, Optical Flow Positioning, Point of Interest
Packing List:
1 x JJRC X9PS Quadcopter
1 x Remote Controller (Battery Included)
1 x 11.4V 1000mAh Li-ion Battery
1 x Balance Charger
1 x Balance Charger
1 x USB Charging Cable
2 x Spare Propeller
1 x L-type Hex Wrench
2 x Spare Propeller
1 x L-type Hex Wrench
1 x User Manual
